Features
1X9 DIP plastic package with simplex SC receptacle
LVPECL logic interface, +3.3V/5.0V single power supply
1310nm MQW FP Structure or DFB Laser
InGaAs/InP PIN photodiode receiver
20km transmission with SMF
Suitable used in the full-duplex transmission application
Full compliant with ITU-T G.957, G.958 specification
SONET/SDH OC-3/STM-1 compliant
Application
Long haul Ethernet transmission
SONET/SDH/ATM
Description

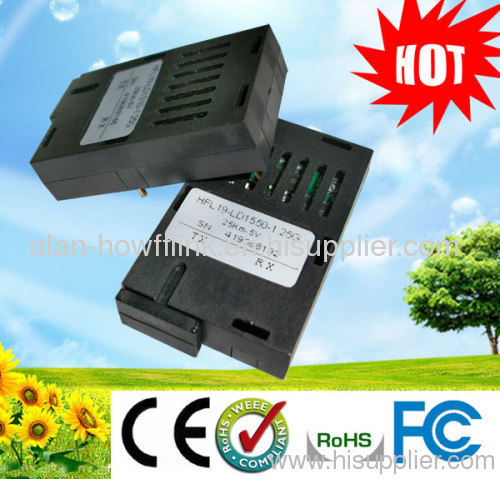

HFL19-S13-1G-1X transceiver is a series single mode SC duplex module designed for optical data communication applications. It is electrically compatible with the MSA transceiver
The transmitter section incorporates an advanced FP laser and driver IC with temperature compensation and automatic power control circuit. The receiver section incorporates an efficient InGaAs/InP PIN photodiode and Trans-impedance amplifier with AGC for wide dynamic range. The transceiver has excellent reliability.
HFL19-S13-1G-1X series transceiver is used for Long haul Ethernet transmission or SONET/SDH/ATM. It is fully compliant with ITU-T G.957, G.958 specification. a 15km to 80km point-to-point solution is suitable to use in the SONET/SDH and 100/1000 Ethernet full-duplex transmission system.
