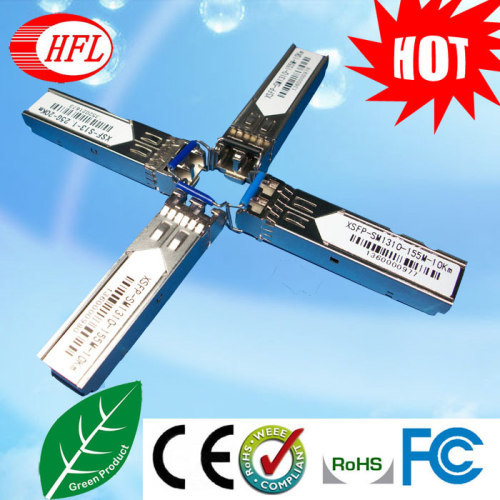

155M SM dual fiber 20Km 1*9 optical module

Price:	32.0~49.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: XSFP-SM1310-155M-20Km

Production Capacity: 5000 pcs per day

Delivery Date: 2 days after payment receiv...

data rate: 155M

distance: 20km

Means of Transport: Ocean,Land,Air

Packing: every 10 pcs wrapped in a c...

Brand Name: howfflink

fiber: dual fiber

wavelength: 1310nm/1550nm

SFP Transceiver
(XSF-S13-155M-20-FX)
Dual data-rate of 155Mbps /100Mbps operation
MQW FP Structure , 1310nm, PIN

SFP Transceiver

(XSF-S13-155M-20-FX)

Features

Dual data-rate of 155Mbps /100Mbps operation

MQW FP Structure , 1310nm, PIN

LVTTL logic level RX LOS

20km transmission with SMF

Standard serial ID information compatible with SFP MSA

SFP MSA package with duplex LC connector

Very low EMI and excellent ESD protection

+3.3V single power supply

Operating case temperature:

Standard: 0 to +70°C

Industrial: -40 to +85°C

Applications

Switch to Switch interface

Switched backplane applications

Router/Server interfac

ATM

SONT/SDH/PDH

FDDI

Fiber Channel

Other optical transmission systems

Standard

Compatible with SFP MSA

Compatible with IEEE 802.3z

Compatible with ANSI specifications for Fibre Channel

Compatible with FCC 47 CFR Part 15, Class B

Compatible with FDA 21 CFR 1040.10 and 1040.11, Class I

Compatible with Telcordia GR-468-CORE

RoHS compliance

Description

The SFP transceiver is high performance, cost effective module supporting dual data-rate of 155Mbps/100Mbps and from 10km to 20km transmission distance with SMF.

The transceiver consists of two sections: The transmitter section incorporates a FP laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All modules satisfy class I laser safety requirements.

The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.

The standard serial ID information compatible with SFP MSA describes the transceiver's capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial CMOS EEPROM

protocol. For further information, please refer to SFP Multi-Source Agreement (MSA).

The SFP transceivers are compatible with RoHS.
